Junkosha 易撕热缩管

易撕热缩管

Junkosha是全球中首个为应用于各种医疗组件的回流焊、层压、遮蔽、热封中的传统FEP热收缩管赋予易撕性的公司。热收缩管可轻易用手撕除。无需使用危险刀具进行刮削,无需特殊训练。

易撕热缩管样品申请

申请样品

特性

●易撕性优异,收缩加工后可轻易去除。
●去除时无需特殊技术,可大幅缩短作业时间。
●去除时无需使用剃刀,不会损伤导管等成型品,为提高成品率做出了贡献。
●可以提供用于微导管成型的极细系列、大口径系列、提高收缩率的高收缩系列、特别提高内部可视性的透明系列等、产品种类丰富多彩。
●以日本为首,润工社在美国、欧洲、中国等多个国家与地区取得了具有易撕性的含氟聚合物热缩管相关基本专利。

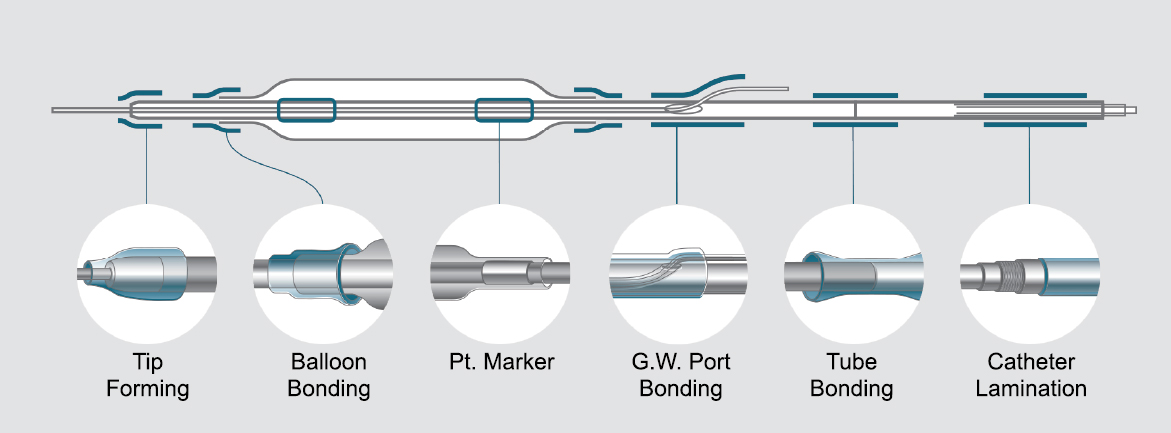

应用

●用于制造各种导管
NFPJNFPXNFPMNFPSNFP
Shrink Ratio2.5: 12.0: 11.6: 11.6~1.4: 11.4: 1
MaterialFEP based FluoropolymerFEP based FluoropolymerFEP based FluoropolymerFEP based FluoropolymerFEP based Fluoropolymer
Expanded I.D.0.75~3.00mm0.60~2.000.38~0.510.64~6.050.71~3.38
Standard Length1000mm1000mm1700mm1000mm or 1700mm1500mm
Features- The Highest Fluoropolymer Shrink Ratio in the World
- 2.5:1 Shrink Ratio for Tapered Shafts and
Tolerance Take Up
- Minimizes Pre-Shrink Process Steps
- Meet “USP Plastic Class VI”
- Ultra Small Type
- 2:1 Shrink Ratio for Tapered Catheter
- Strong Compression Force for Complex and Multi Layer Structure
- Easy to Insert Materials Smoothly
- Meet “USP Plastic Class VI”
- High Shrink and Transparent Type
- Best for Coating Process of GW/Coils
- Strong Compression Force
- Skiving Process is Too Difficult, PHST Can Remove it Easily
- Meet “USP Plastic Class VI”
- Wide Lineup (1.5 Fr to 17 Fr)
- Best for the Replacement of Current FEP-HST,
- Meet “USP Plastic Class VI”
- Standard Type
- Best for the Replacement of Current FEP-HST, Polyolefin-HST and Silicon-HST
- Meet “USP Plastic Class VI”

Applications

Tube Size Used with Various Catheters

ApplicationRecovered I.D.NFPJ
2.5: 1
NFPX
2.0: 1
NFPM
1.6: 1
NFPS/NFP
1.6~1.4: 1
inchmm
Guide Wire/Coils0.0080.2
0.0120.3
0.0160.4
0.0200.5
0.0240.6
0.0280.7
Micro Catheter0.0310.8
0.0350.9
0.0391.0
0.0431.1
0.0471.2
Balloon Catheter0.0511.3
0.0551.4
0.0591.5
0.0631.6
0.0671.7
0.0711.8
0.0751.9
0.0792.0
0.0832.1
EP/Ablation Catheter0.0872.2
0.0912.3
0.0942.4
0.0982.5
0.1022.6
0.1062.7
0.1102.8
0.1142.9
0.1183.0
Guiding/Sheath0.1223.1
0.1263.2
0.1303.3
0.1343.4
0.1383.5
0.1423.6
AAA/TAA/TAVI0.157-0.3154.0-8.0

How to Use Peelable Heat Shrink Tubing

FEP Heat Shrink Tubing vs. Peelable Heat Shrink Tubing

FEP Heat Shrink Tubing vs. Peelable Heat Shrink Tubing Movie

Optional Extra

- Customized dimensions for your special application
- Transparent type available
- Double bags package available for clean room handling
- Cut to length and slit available for small size or short length application
