Junkosha Multi-Core Cable and Assembly
In recent years, highly specialized ultrasonic probes deployed inside the human body cavity have been used to diagnose organs and blood vessels that are difficult to diagnose using more traditional ultrasonic probes used on the surface of the body. Due to the need to tackle the body’s expansive and complex vasculature, smaller delivery devices and probe units are required. Junkosha has developed a new multi-channel transmission cable to replace existing coaxial and FPC subassemblies that offer improved signal integrity, mechanical flexibility and space savings.
Features
- Thinner - Since our multi-channel transmission cable structure is thinner than the outer diameter of a standard coaxial cable, the number of signal lines can be increased in a smaller/identical footprint
- Signal Quality - Since the signal quality is equivalent to that of a coaxial cable, this product can be easily integrated into existing designs and can improve the overall signal quality of a system through advanced coupling technology
- Flexible - Since our multi-channel transmission cable is flexible and allows for improved movement of a delivery system when compared to more traditional constructs, it is ideal for internal diagnostic applications
- Process Friendly - A simplified and centralized cable structure can reduce device assembly man-hours and improve assembly yields and quality, thus lowering total overhead manufacturing costs
- Subassembly Service - Junkosha can offer various subassembly and value-add services to further streamline manufacturing needs and processes
- Signal Quality - Since the signal quality is equivalent to that of a coaxial cable, this product can be easily integrated into existing designs and can improve the overall signal quality of a system through advanced coupling technology
- Flexible - Since our multi-channel transmission cable is flexible and allows for improved movement of a delivery system when compared to more traditional constructs, it is ideal for internal diagnostic applications
- Process Friendly - A simplified and centralized cable structure can reduce device assembly man-hours and improve assembly yields and quality, thus lowering total overhead manufacturing costs
- Subassembly Service - Junkosha can offer various subassembly and value-add services to further streamline manufacturing needs and processes
Use
- Intracardiac Echocardiogram (ICE)
- Ultrasound Endoscopy
- Intravascular Ultrasound (IVUS)
- Transesophageal Echocardiogram (TEE)
- Ultrasound Endoscopy
- Intravascular Ultrasound (IVUS)
- Transesophageal Echocardiogram (TEE)
| Conductor Size | 64 Channels O.D. | ||
| MCT | Coax | Reduction Ratio | |
| AWG＃44 | 0.062" (1.57 mm) | 0.109" (2.77 mm) | 43% |
| AWG＃46 | 0.059" (1.50 mm) | 0.086" (2.19 mm) | 32% |
| AWG＃48 | 0.044" (1.12 mm) | 0.066" (1.68 mm) | 33% |
| AWG＃50 | 0.040" (1.00 mm) | 0.060" (1.53 mm) | 35% |
Capacitance: nom.115 pF, Characteristic Impedance: nom. 50 Ω

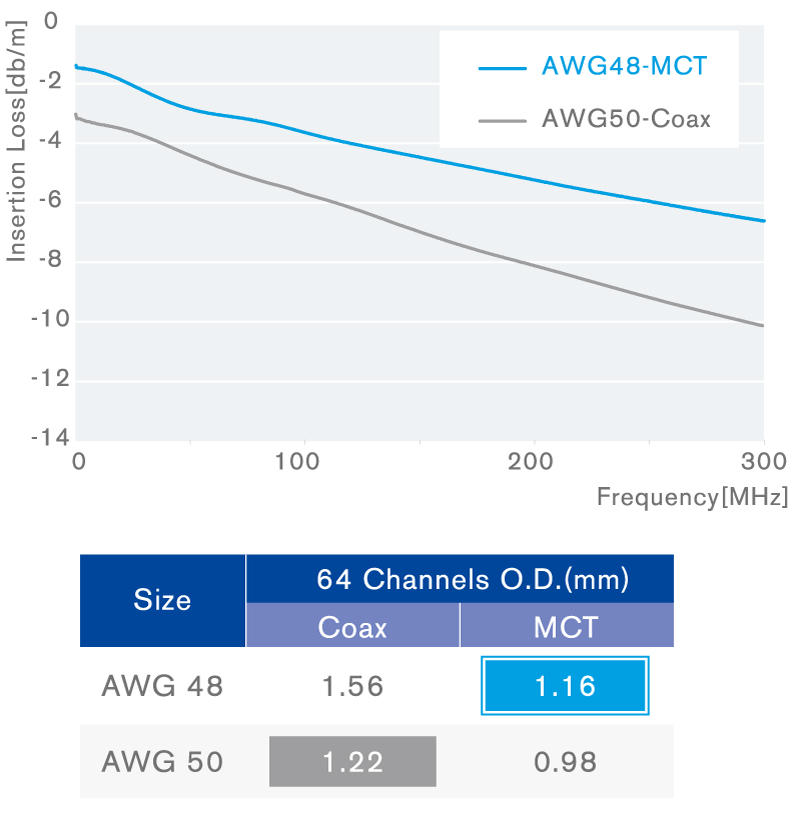

AWG50 Coax vs. AWG48 MCT [Case Study: Lumen I.D. for Cable: 1.25mm]
In a case where the inner diameter of a cable lumen in a catheter is 1.25 mm for a transmission line utilizing a 64ch probe.
When you select a Coax cable, then the outer diameter will be 1.22 mm at size AWG50, whereas if you select the Junkosha MCT cable, the outer diameter will be 0.98mm. Additionally, if you select size AWG48 for the Junkosha MCT cable, the outer diameter will be 1.16 mm which is still thinner than an AWG50 Coax cable. However, the transmission characteristics will be significantly improved, which will result in improved ultrasonic image quality and an improved catheter assembly process.
When you select a Coax cable, then the outer diameter will be 1.22 mm at size AWG50, whereas if you select the Junkosha MCT cable, the outer diameter will be 0.98mm. Additionally, if you select size AWG48 for the Junkosha MCT cable, the outer diameter will be 1.16 mm which is still thinner than an AWG50 Coax cable. However, the transmission characteristics will be significantly improved, which will result in improved ultrasonic image quality and an improved catheter assembly process.
