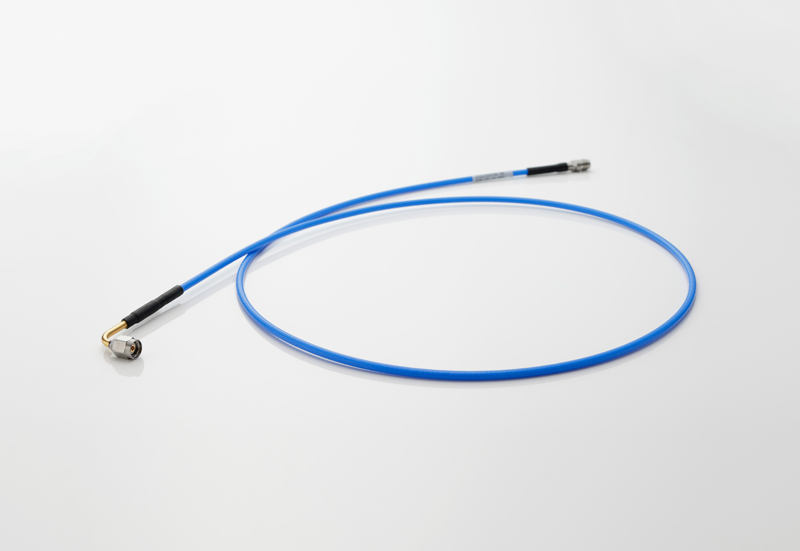

Junkosha Microwave/mmWave Coaxial Cable Assembly
Superior phase stability against bending and temperature fluctuations makes this cable assembly perfect as a vector network analyzer connector for measurement.
Continuous operation temperature range: -30 to +85°C.
7 cables with different maximum usage frequencies (26.5 GHz, 50 GHz, 67 GHz, 70 GHz, 110 GHz, 120 GHz and 145 GHz) are available.
Continuous operation temperature range: -30 to +85°C.
7 cables with different maximum usage frequencies (26.5 GHz, 50 GHz, 67 GHz, 70 GHz, 110 GHz, 120 GHz and 145 GHz) are available.
Cable Assembly Designer
We can help you design your cable assembly and confirm your cable assembly specification.
Features
- Thin and flexible
- We have a lineup of coaxial cables with Time Delay of 3.6ns/m and 3.8ns/m and Velocity of Propagation of 77-79%
- We have a lineup of coaxial cables with Time Delay of 3.6ns/m and 3.8ns/m and Velocity of Propagation of 77-79%
Use
- Vector network analyzers
- RF and high-speed digital testing devices
- RF and high-speed digital testing devices
| Cable Type | MWX021 | MWX051 | MWX061 | MWX071 | MWX001 | MWX002 | MWX004 | |
| Maximum Operating Frequency | 26.5 GHz | 50.0 GHz | 67.0 GHz | 70.0 GHz | 110.0 GHz | 120.0 GHz | 145.0 GHz | |
| Typical Insertion Loss(dB/m) | @18.5 GHz | 1.6 | 2.7 | 3.5 | 3.5 | 4.2 | 5.0 | 5.0 |
| @Maximum Frequency | 2.0 | 4.6 | 7.3 | 7.5 | 11.8 | 14.5 | 28.1 | |
| Cable Outer Diameter(mm) | 8.5 | 6.6 | 6.6 | 6.6 | 4.0 | 4.0 | 4.0 | |
| Mass (g/m) | 122 | 76 | 73 | 73 | 50 | 50 | 50 | |
| Continuous Operating Temperature（℃） | -30 ～+85 | |||||||
| Assembly Length(mm) | Minimum | 700 | 700 | 700 | 700 | 100 | 100 | 100 |
| Maximum | 1500 | 1500 | 1500 | 1500 | 200 | 200 | 200 | |
This table provides standard length availability within our catalog. We can provide custom lengths upon request; please contact us to discuss.

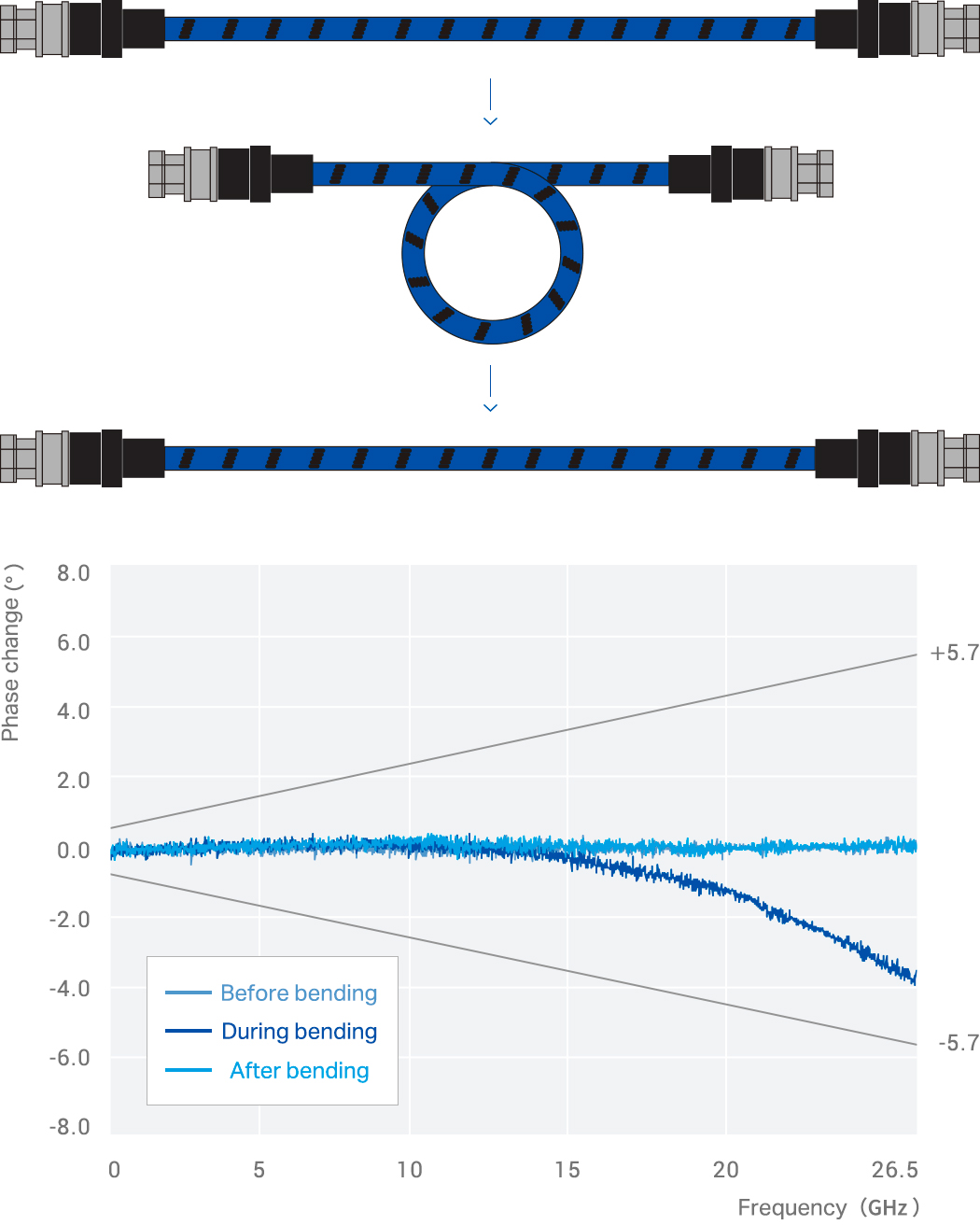

MWX021 Static Bending Test
- Measure by Winding the Test Cable 360 ° Around A φ60 mm Mandrel * 26.5 GHz Guaranteed Value within ± 5.7 °

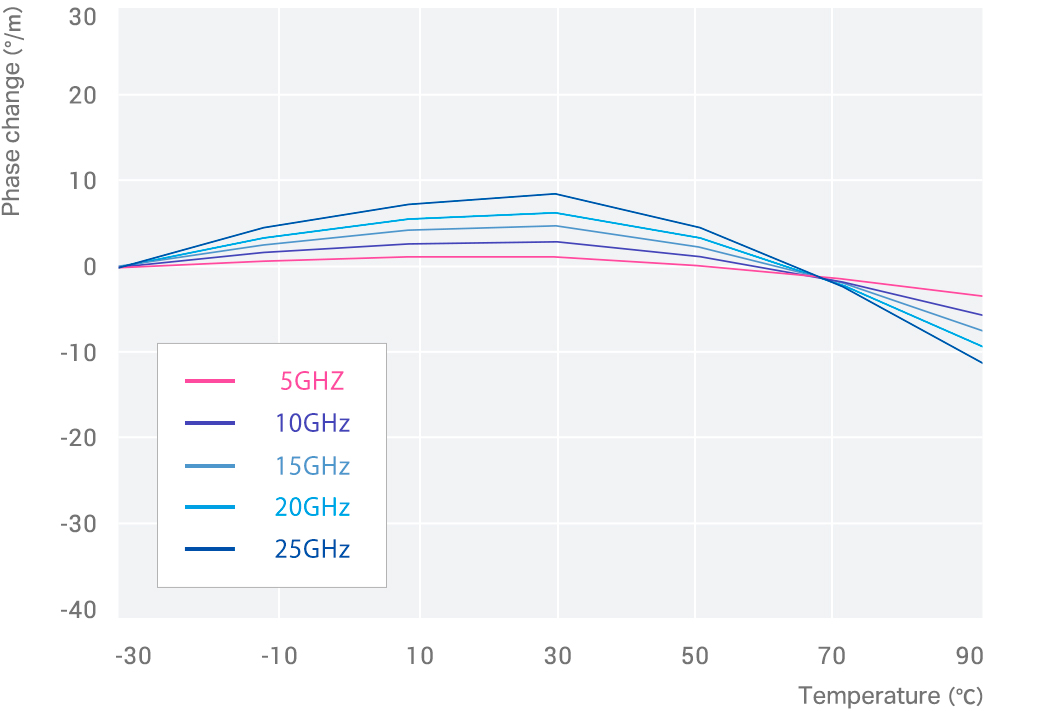

MWX021 Temperature-Phase Data
- Increase the Temperature of the Test Cable in Steps of -30 ° C to 20 ° C and Measure for Each Frequency (Leaving Time at Each Temperature is 1 Hour)

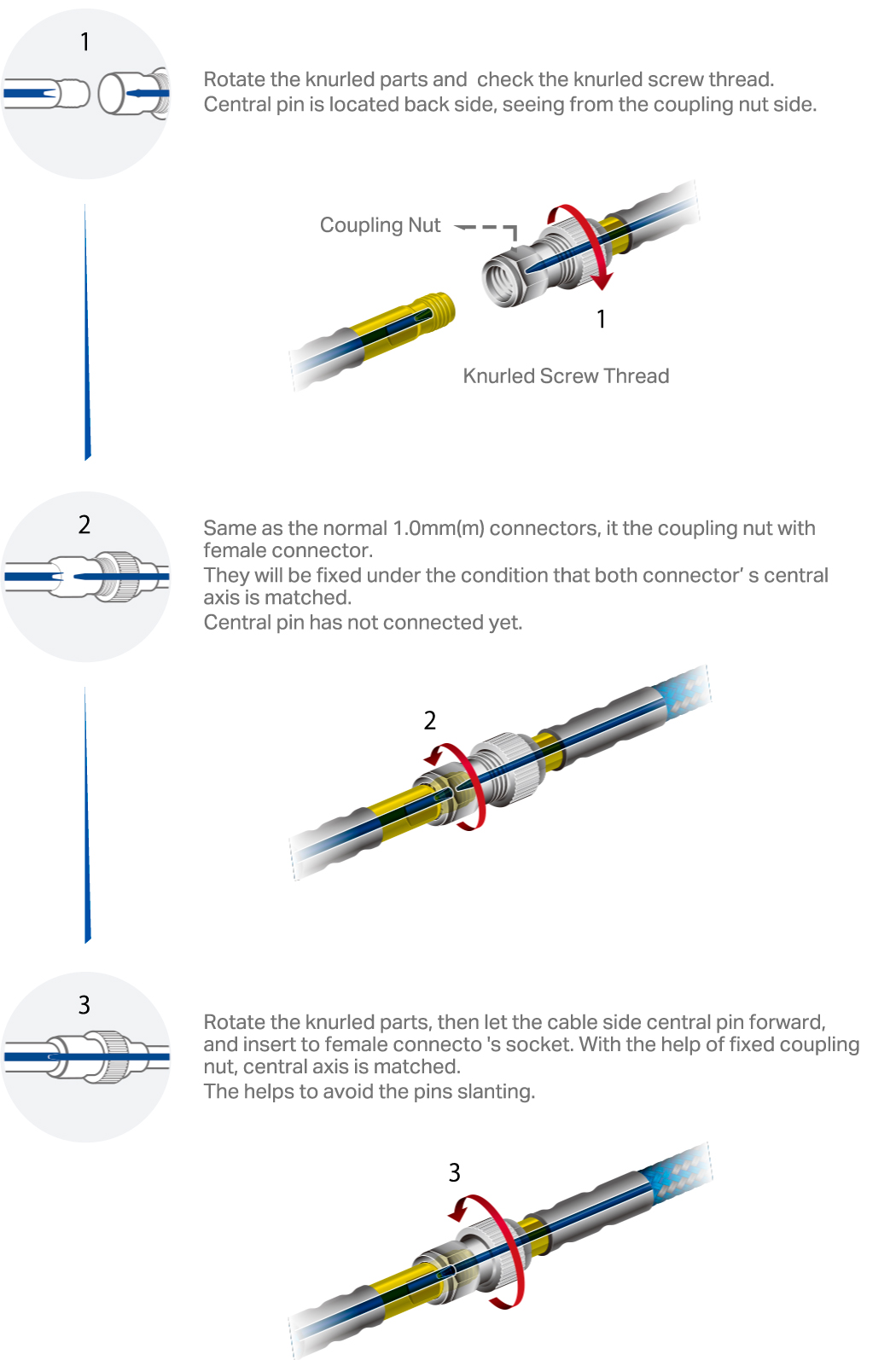

How to Use "Safety Lock Mechanism" of 1.0 mm(m) Connector
Option: Non-Armor Type
- Non-Armor Type is available in MWX051 (2.4 mm & 2.92 mm) & MWX061 (1.85 mm) for Wafer Probe Station.
