Junkosha Microwave/mmWave Coaxial Cable Assembly
Our 3 Series cable assembly showcases excellent phase stability against temperature fluctuations.
Continuous operating temperature range: -65 to +125°C (except MWX315: -30 to +85°C).
Continuous operating temperature range: -65 to +125°C (except MWX315: -30 to +85°C).
Cable Assembly Designer
We can help you design your cable assembly and confirm your cable assembly specification.
Features
- Cable assembly with excellent phase stability against temperature fluctuations
- Wide temperature usage range
- We also have an extensive lineup of connectors
- Connector neck has been reinforced, providing superior durability than standard microwave cables for wiring between devices
- Wide temperature usage range
- We also have an extensive lineup of connectors
- Connector neck has been reinforced, providing superior durability than standard microwave cables for wiring between devices
Use
- Electronic equipment inside communication satellites and ground stations
- Electronic equipment inside flight instruments
- Air traffic control equipment
- Electronic equipment on ships
- Equipment which is severely impacted by signal leakage and interference
- Electronic equipment inside flight instruments
- Air traffic control equipment
- Electronic equipment on ships
- Equipment which is severely impacted by signal leakage and interference
| Cable Type | MWX311 | MWX312 | MWX313 | MWX314 | MWX315 | MWX321 | MWX322 | MWX341 | MWX342 | |
| Maximum Usable Frequencies | 18.5 GHz | 18.0 GHz | 26.5 GHz | 40.0 GHz | ||||||
| Standard Insertion Loss (dB/m) | @18.5 GHz | 3.4 | 2.2 | 1.9 | 0.8 | - | 1.8 | 1.1 | 2.1 | 1.5 |
| @Maximum Frequency | - | - | - | - | 0.76 | 2.4 | 1.3 | 3.3 | 2.4 | |
| Outer Cable Diameter (mm) | 2.7 | 4.1 | 4.7 | 7.7 | 8.6 | 4.7 | 5.2 | 4 | 3.9 | |
| Cable Weight (g/m) | 18.5 | 42 | 52 | 125 | 155 | 52 | 60 | 40 | 35 | |
| Continuous Operating Temperature Range (°C) | -65~+125 | -30~+85 | -65~+125 | |||||||
| Assembly Length (mm) | Minimum | 100 | 100 | 100 | 200 | 500 | 100 | 200 | 100 | 200 |
| Maximum | 10000 | 20000 | 20000 | 20000 | 5000 | 20000 | 20000 | 10000 | 10000 | |
This table provides standard length availability within our catalog. We can provide custom lengths upon request; please contact us to discuss.

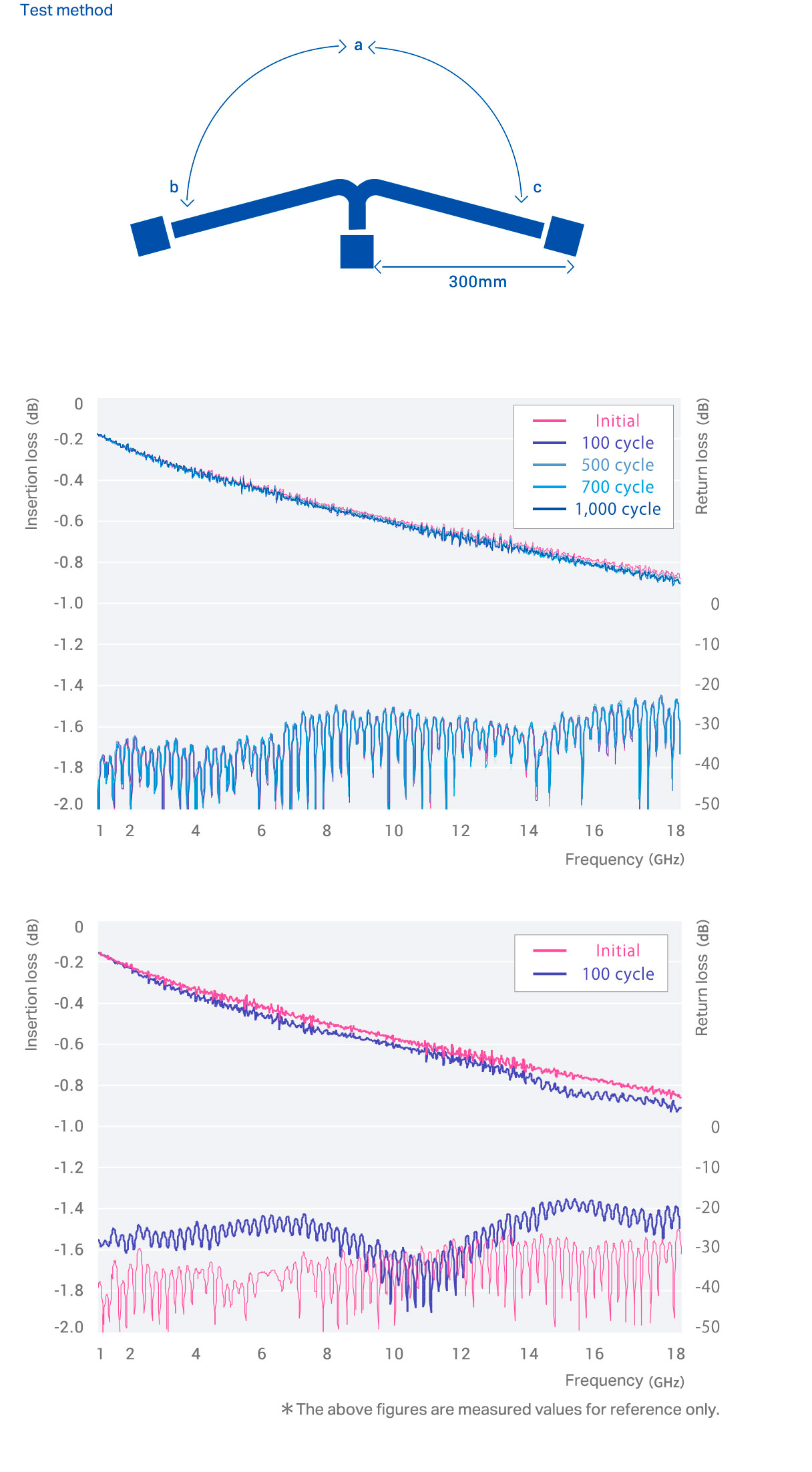

Bending Test Comparison Data for MWX312 and a Conventional Cable
- The connector on one end of test cable (MXW312-00500AMSAMS, measuring 500 mm in length and with SMA (m) connectors on both ends) was fixed in place. The connector on the other end was moved in the sequence a → b → c, after which initial insertion loss and return loss values were compared to those after the test.
-
Top graph: MWX312-00500AMSAMS
Bottom graph: Conventional product
* Data are actual measurement values, not guaranteed values.
