Using multi-layer extrusion molding that combines raw materials with properties that are physically different to fluoropolymers gives this tubing, which is often used as chemical piping, the chemical resistance, adhesion resistance, and low dissolution of fluoropolymers. In addition, it also provides high-performance characteristics not associated with fluoropolymers including barrier properties, flexibility, conductivity, and buckling resistance.
Features
- Permeation of acid, water, gas, and ultraviolet radiation is prevented by using a multi-layer structure.
- Flexibility, buckling resistance, and abrasion resistance is improved by using a multi-layer structure.
- Flexibility, buckling resistance, and abrasion resistance is improved by using a multi-layer structure.
Use
- Tubes for painting equipment
- Tubes for printers
- Tubes for centralized lubrication equipment
- Tubes for analysis devices
- Tubes for printers
- Tubes for centralized lubrication equipment
- Tubes for analysis devices
| Solvent/Moisture Barrier Tubing | Gas/Oxygen Barrier Tubing | Internal Visibility UV Shielding Tubing | |
| Type | HB1 | HB2 | HB3 |
| Shape | Straight | Straight | Straight |
| Tube Structure | Inner Layer: Special Barrier Fluoropolymer Outer Layer: Flexible Polymer | Inner Layer: Special Barrier Fluoropolymer Intermediate Layer: Gas Barrier Polymer Outer Layer: Polyolefin | Inner Layer: Special Barrier Fluoropolymer Outer Layer: UV Shielding Special Polymer |
| Maximum Operating Pressure (MPa) | <0.25~0.50 | <0.25~0.50 | <0.25~0.50 |
| Operating Temperature Limit | 0~+70°C | 0~+70°C | 0~+70°C |
| Color | Natural Color or Black | Natural Color or Black | Yellow |

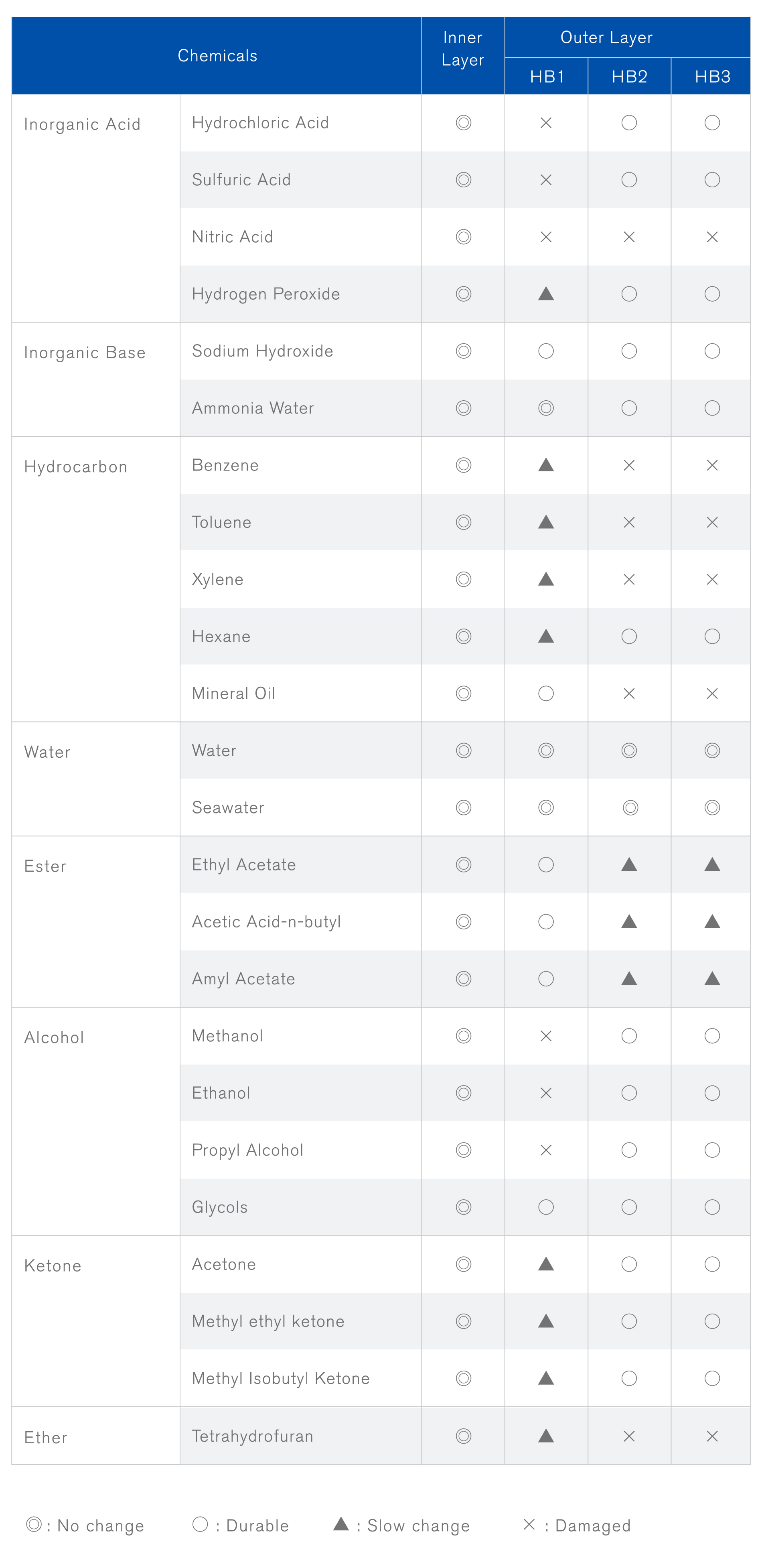

- Chemical Resistance of Barrier Tube
HB1 Tube Technical Data
- Solvent / Moisture Barrier Performance
- Flexibility Comparison
- The test tube (φ6 × 4) was bent into a U shape, and the repulsive force from a bending radius of 50 mm to 10 mm was measured.
HB2 Tube Technical Data
- Oxygen Permeation Test
- The tube was filled with degassed water, and the change was measured in dissolved oxygen concentration that passed through the tube.
HB3 Tubing Technical Data
- Ink Solidification Prevention Effect and Visibility Comparison
- The tube was filled with ink, irradiated with black light (365 mmm) for 2 hours, and then the tube cross section was observed.
