Junkosha 高柔扁平电缆

低发尘电缆

线护套采用了耐摩擦性优异的热可塑性弹性体材料,使用了标准库存的专用芯缆。
相比需进行熔接加工的扁平电缆,大幅缩短了交货期。
此外,还组装了固定件,交货后可立即构建电缆系统。

特性

●使用标准芯缆可短期交货。
●因可承接仅购买1条的订单,也是试制机的理想选择。

应用

6-Stations Type8-Stations Type
Cabling WidthNom 56mmNom 76mm
Cabling Thickness5.5~7.0mm5.5~7.0mm
Fixing Bracket Length100~1000mm100~1000mm
Horn LengthAdjustable in 100mm IncrementsAdjustable in 100mm Increments
Recommended Bending Radius65mm or More
(Expected Life for All Cores Is 10 Million Times)
65mm or More
(Expected Life for All Cores Is 10 Million Times)
Operating Temperature
(With Polyurethane Tube)
-30~+60℃-30~+60℃
Operating Temperature
(No Polyurethane Tube)
-30~+105℃-30~+105℃

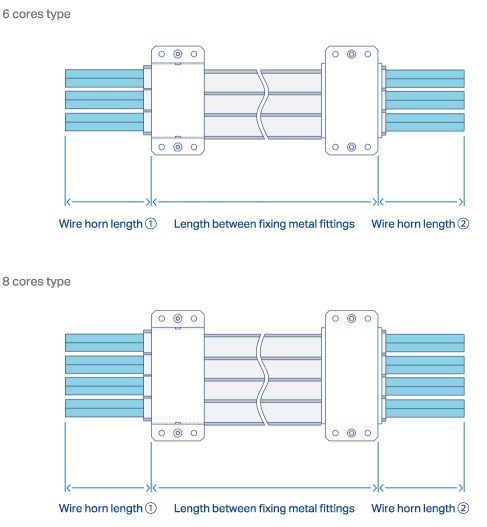

Structure of Low Dust Generation Cable Assembly with Bracket

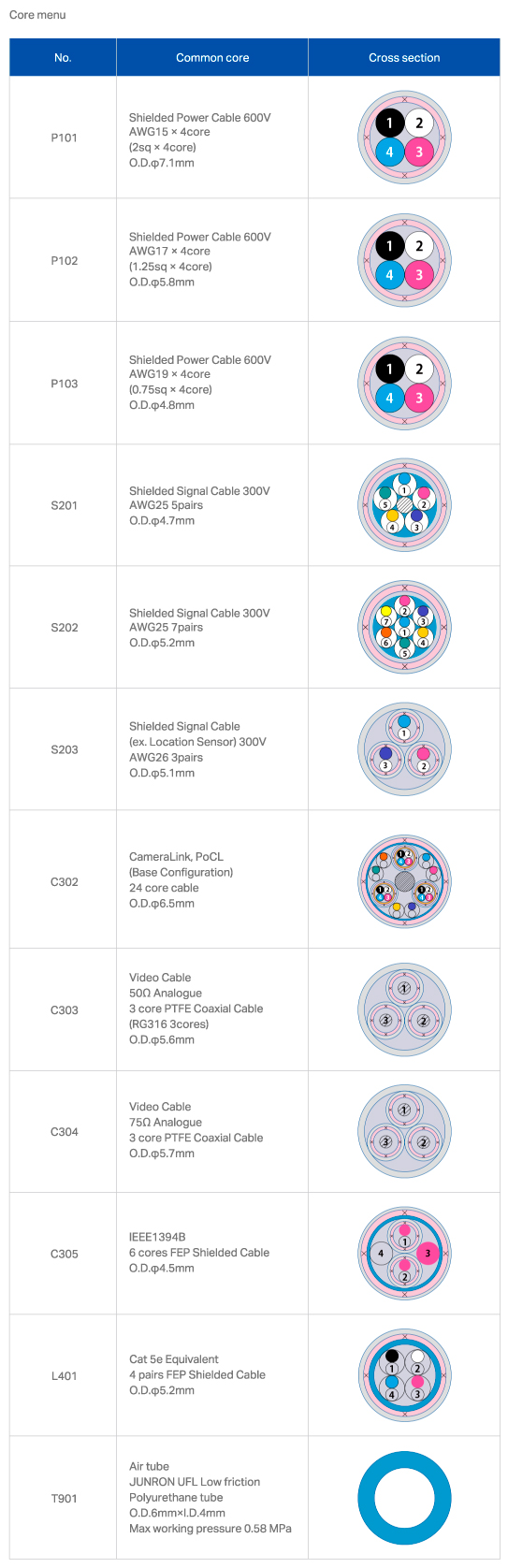

Example of Core Menu of Low Dust Generation Cable Assembly with Metal Fittings
