Hookup wire is commonly used inside electrical and electronic equipment because it has the electrical and mechanical properties that provide the superior reliability required of high-density wires.
Features
- Suitable for continuous operation in a wide temperature range (from -253C˚ to +260C˚ with PTFE jacket; nickel plated annealed copper is applied for use in environment over 200C˚)
- Flame resistant and low smoke emission
- Stable electrical properties in a wide range of temperatures and frequencies
- Consistent electrical performances in wide temperature and frequency range
- Thinner diameter and light weight
- Low friction coefficient and easy to wire
- Adhesion resistant and easy to clean
- Excellent weather resistance
- Minimum secular change in performance realizes long product life
- Flame resistant and low smoke emission
- Stable electrical properties in a wide range of temperatures and frequencies
- Consistent electrical performances in wide temperature and frequency range
- Thinner diameter and light weight
- Low friction coefficient and easy to wire
- Adhesion resistant and easy to clean
- Excellent weather resistance
- Minimum secular change in performance realizes long product life
Use
- Internal wiring and control wiring for electronic devices that require high reliability
- Internal wiring for high-frequency devices such as broadcasting, communication and measuring equipment
- Internal wiring and lead wires for various high-temperature devices requiring heat durability, including thermostatic chambers, floodlights and water heaters
- Wiring for compact electronic devices
- Other characteristics and uses: chemical resistance/chemical equipment; Freon resistance/freezers; weathering/ship equipment and unmanned monitoring equipment; flame resistance/emergency wiring; and resistance against extremely low temperatures/lead wires and power wires for liquefied gas measuring devices
- Internal wiring for high-frequency devices such as broadcasting, communication and measuring equipment
- Internal wiring and lead wires for various high-temperature devices requiring heat durability, including thermostatic chambers, floodlights and water heaters
- Wiring for compact electronic devices
- Other characteristics and uses: chemical resistance/chemical equipment; Freon resistance/freezers; weathering/ship equipment and unmanned monitoring equipment; flame resistance/emergency wiring; and resistance against extremely low temperatures/lead wires and power wires for liquefied gas measuring devices
| PTFE Hookup Wire | PFA Hookup Wire | FEP Hookup Wire | ETFE Hookup Wire | |
| Part No. | AT | AA | AF | AE |
| Insulating Material | PTFE | PFA | FEP | ETFE |
| Conductor Material | NA SA | NA SA | SA TA | TA |
| The Maximum Continuous Operating Temperature | NA：260℃ SA：200℃ | NA：260℃ SA：200℃ | SA：200℃ TA：150℃ | TA：150℃ |
| Color of Wire | Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White | |||
NA: Nickel-plated annealed copper wire, SA: Silver-plated annealed copper wire, TA: Tin-plated annealed copper wire
- Junkosha Hookup Wires (Single to Quad)
-
1 ) NA: Nickel-plated annealed copper, SA: Silver-plated annealed copper, TA: Tin-plated annealed copper
2) For types with rated voltage of 600 V or 1000 V, the minimum diameter of the single conductor is 0.20mm.

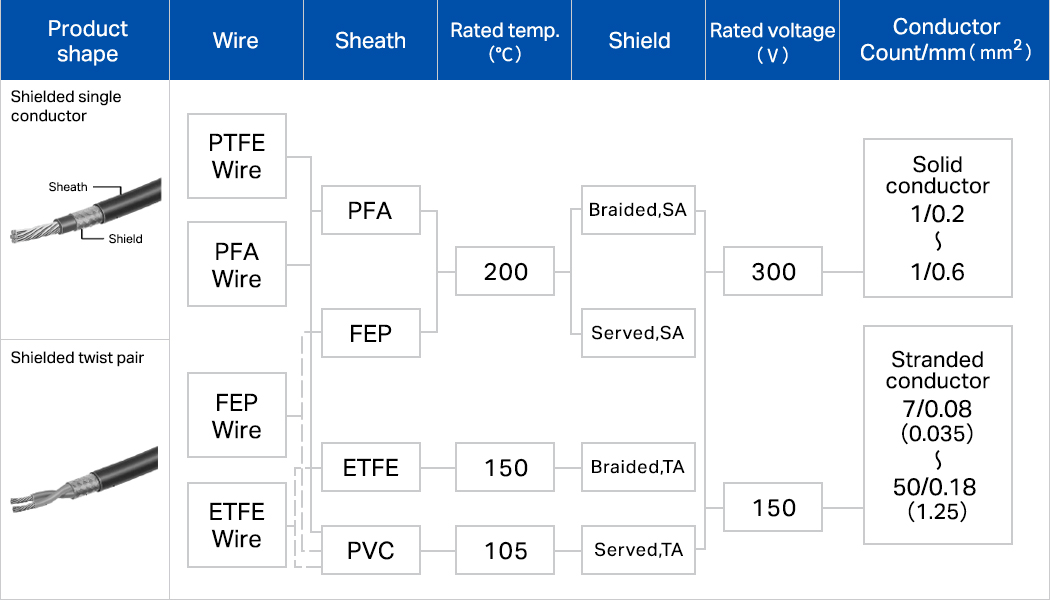

- Junkosha Hookup Wires (Shielded Single and Twisted Wires)
