Junkosha Fluid Transfer Tubing
Junkosha’s Peristaltic Pump Tubing uses a proprietary composite of polytetrafluoroethylene (PTFE) and elastomers to deliver high tensile strength and consistent elastic properties. In addition, the inner surface of the tubing incorporates a special fluoroelastomer, providing chemical resistance that surpasses ordinary thermoplastic elastomer (TPE) tubing and enabling use with highly aggressive fluids. This unique structure provides stable, long-term performance across a wide range of industrial, environmental, biopharmaceutical, and medical applications.
Features
- High tensile strength and consistent elastic properties provide durability while maintaining flexibility. The tubing withstands high pressure and enables millions of peristaltic cycles.
- Outstanding long service life helps reduce equipment downtime.
- Excellent resistance to cracking and delamination prevents contamination of valuable fluids.
- Ensures accurate and repeatable fluid transfer.
- Provides excellent chemical compatibility.
- Outstanding long service life helps reduce equipment downtime.
- Excellent resistance to cracking and delamination prevents contamination of valuable fluids.
- Ensures accurate and repeatable fluid transfer.
- Provides excellent chemical compatibility.
Use
- Pharmaceuticals / semiconductor manufacturing / chemical processing / analytical preparations
- Transfer of corrosive fluids containing organic solvents.
- Transfer of corrosive fluids containing organic solvents.
| Inner Diameter | Wall Thickness | Length |
| 6.4 mm (0.25 inch) | 2.4 mm (0.094 inch) | 305 mm (12 inch) |
| 8.0 mm (0.31 inch)* | 2.4 mm (0.094 inch) | 305 mm (12 inch) |
| 9.6 mm (0.38 inch)* | 2.4 mm (0.094 inch) | 305 mm (12 inch) |
| 17.0 mm (0.70 inch)* | 4.0 mm (0.157 inch) | 305 mm (12 inch) |
* Under development (Please contact us regarding dimensions other than those listed above.)

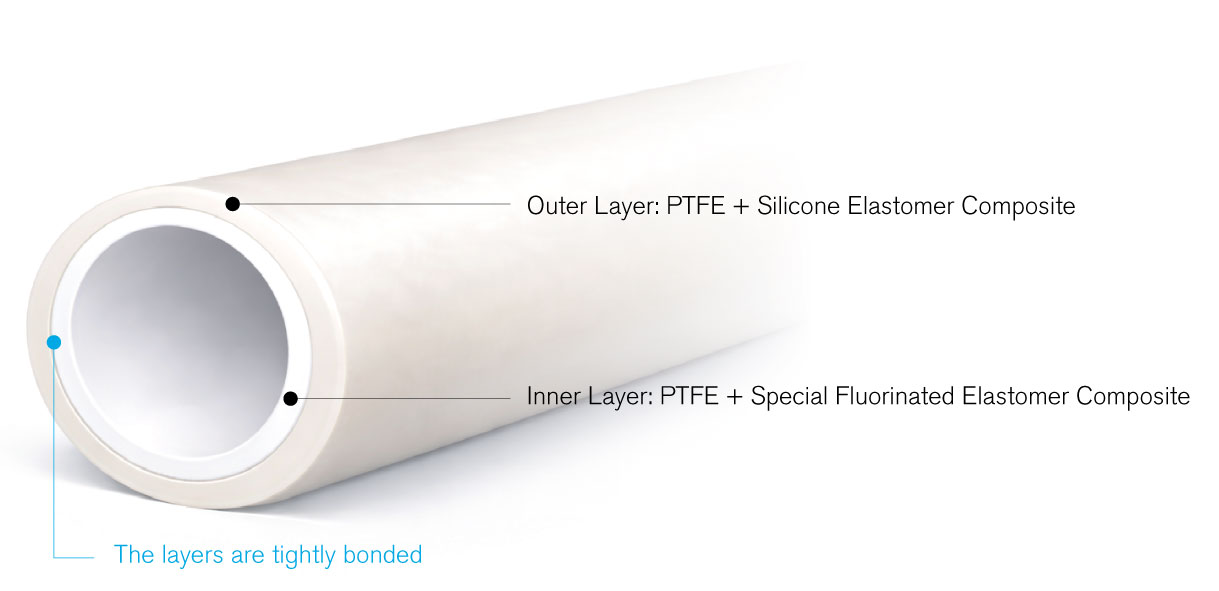

Tube Structure

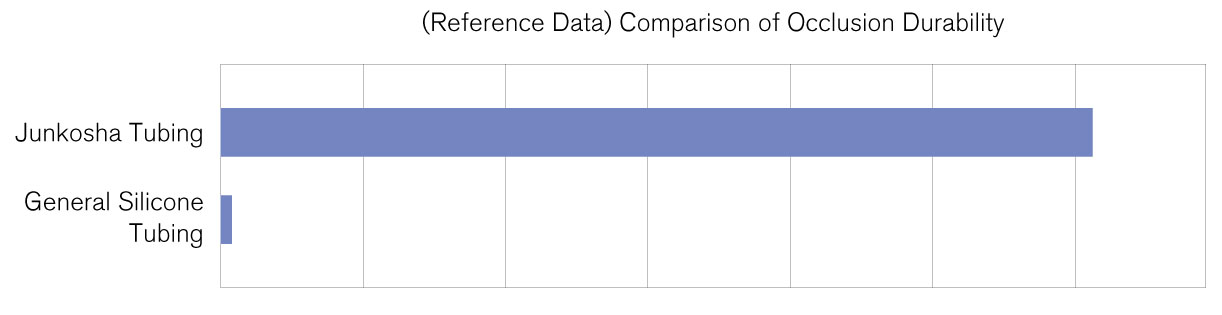

Durability
- It has superior durability compared to general silicone tubes.
-
Tube size: Φ6.4 mm
Mounted on an actual pump and subjected to continuous
operation tests.
Please contact us for further details.
Chemical Resistance
| Chemicals | |
| Acid | Phosphoric Acid |
| Nitric Acid | |
| Peracetic Acid | |
| Alkali | NaOH Solution |
| Organic | Hydrocarbons |
| Methanol | |
| Ethyl Acetate | |
| 1-Hexanal | |
| DMSO (Dimethyl Sulfoxide) | |
| Others | H2O2 (Hydrogen Peroxide) |
| Water | |
| EDTA (Ethylene Diamine Tetraacetic Acid) | |
| Buffers |
| Chemicals | Mass Change [%] | Change in Hardness [%] | Volume Change [%] | Appearance |
| Acetone | +0.5 | -1.1 | +0.7 | Minimal no change |
| Toluene | +0.5 | -2.2 | -0.2 | Minimal no change |
| Methyl Ethyl Ketone | +0.7 | -2.4 | -0.5 | Minimal no change |
| NaOH Solution | 0.0 | +0.2 | -0.4 | Minimal no change |
| Phosphoric Acid | 0.0 | -2.0 | -1.1 | Minimal no change |
| Nitric Acid | 0.0 | 0.0 | -1.0 | Minimal no change |
The test chemical solution was sealed inside a φ6.4 mm tube, and the change in volume was confirmed.
Biocompatibility Evaluation
- USP <87>, Biological Reactivity Tests, In Vitro
- USP <88>, Biological Reactivity Tests, In Vivo, USP Plastic Class VI
- USP <88>, Biological Reactivity Tests, In Vivo, USP Plastic Class VI
Please contact us for detailed specifications.
