Microwave/mmWave Coaxial Cable Assembly 7 Series - Phase Stability Multi Purpose Applications

7 series Assemblies offer phase stability in multi purpose applications delivering reliable electrical performance, especially in phase & amplitude stability against temperature, to support repeatable measurement results.

Features

- Genuine Flexibility
7 Series Assemblies provide stress free implementation and exhibits no “spring-back” for both operator and devices.

- Phase & Amplitude Stability
7 Series Assemblies have proven Phase & Amplitude Stability in both Flexure and Temperature changes, thanks to Junkosha Engineered ePTFE tape wrapping technology.

Use

- Automated Test Equipment, Systems
- Radar Antenna Arrays,

Cable Type	E11 0.047”	E13 0.086”	E14 0.120”	E42 0.070”	E43 0.086”	E44 0.120”	E61 0.047”	E62 0.070”
Maximum Operating Frequency [GHz]	18	18	18	40	40	40	67	67
Characteristic Impedance [Ω]	50
Typical Capacitance [pF]	84	87	85	83	87	85	84	83
Nominal Velocity of Propagation [%]	79	78	80	80	78	80	79	80
Typical Insertion Loss [dB/ft (dB/m)]	1.9 (6.3)	1.0 (3.3)	0.7 (2.4)	1.7 (5.7)	1.6 (5.2)	1.2 (3.9)	4.2 (13.9)	2.4 (7.7)
Maximum Insertion Loss [dB/ft (dB/m)]	2.1 (7.0)	1.1 (3.67)	0.78 (2.6)	1.9 (6.3)	1.8 (5.9)	1.3 (4.4)	4.8 (15.6)	2.7 (8.7)
Typical VSWR	1.43	1.4	1.4	1.43	1.43	1.44	1.43	1.43
Shielding Effectiveness to 18GHz (dB)	90
Cable Outer Diameter [in (mm)]	0.047 (1.2)	0.086 (2.2)	0.120 (3.0)	0.070 (1.8)	0.086 (2.2)	0.120 (3.0)	0.047 (1.2)	0.070 (1.8)
Minimum Bending Radius [in (mm)]	0.39 (10)	0.39 (10)	0.59 (15)	0.39 (10)	0.39 (10)	0.59 (15)	0.39 (10)	0.39 (10)
Typical Cable Mass [oz/ft (g/m)]	0.06 (5.1)	0.13 (12)	0.27 (25)	0.11 (10)	0.13 (12)	0.27 (25)	0.06 (5.1)	0.11 (10)
Operating Temperature Range [˚C]	-65 ~ +125

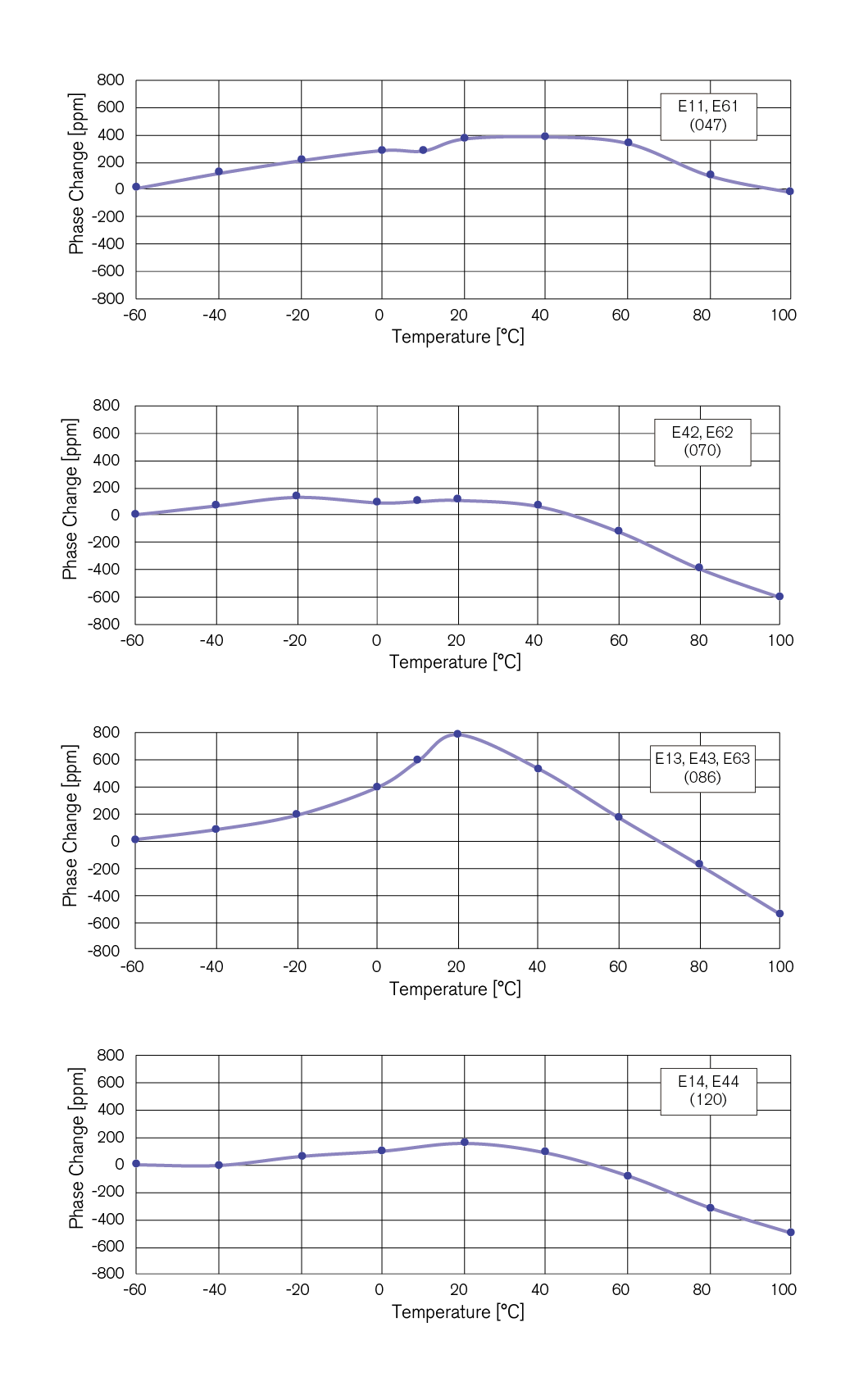

Phase Stability vs Temperature (@18.5 GHz)
