Junkosha Flat and High-Flex Cable
Utilizing Junkosha’s manufacturing technology for highly flexible robot cables and high-speed signal transmission lines, we have developed a highly durable cable which exhibits bending far superior to that of conventional products.
This product is used in applications which comply with USB 3.1 standards, such as machine vision.
This product is used in applications which comply with USB 3.1 standards, such as machine vision.
Features
- Optical fibre types significantly improve transmission distances
- Compatible with USB 3.1 image processing standards for industrial machine vision systems
- Maintains durability against rolling flex repeated for over 100 million cycles at a minimum bending radius of 50mm (R=50) (optical fibre type)
- Compatible with USB 3.1 image processing standards for industrial machine vision systems
- Maintains durability against rolling flex repeated for over 100 million cycles at a minimum bending radius of 50mm (R=50) (optical fibre type)
Use
- Chip mounters used on movable parts and visual inspection devices for circuit boards

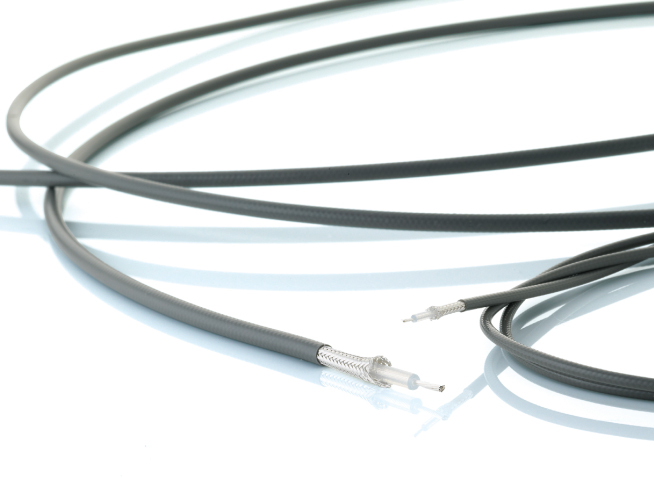

FEP Coaxial Cable for Moving Parts
- 50Ω and 75Ω 50ω and 75ω Coaxial Cables for Use in Moving Parts. It Combines the Excellent Electrical Properties of Fluoropolymers with High Mechanical Life Characteristics.

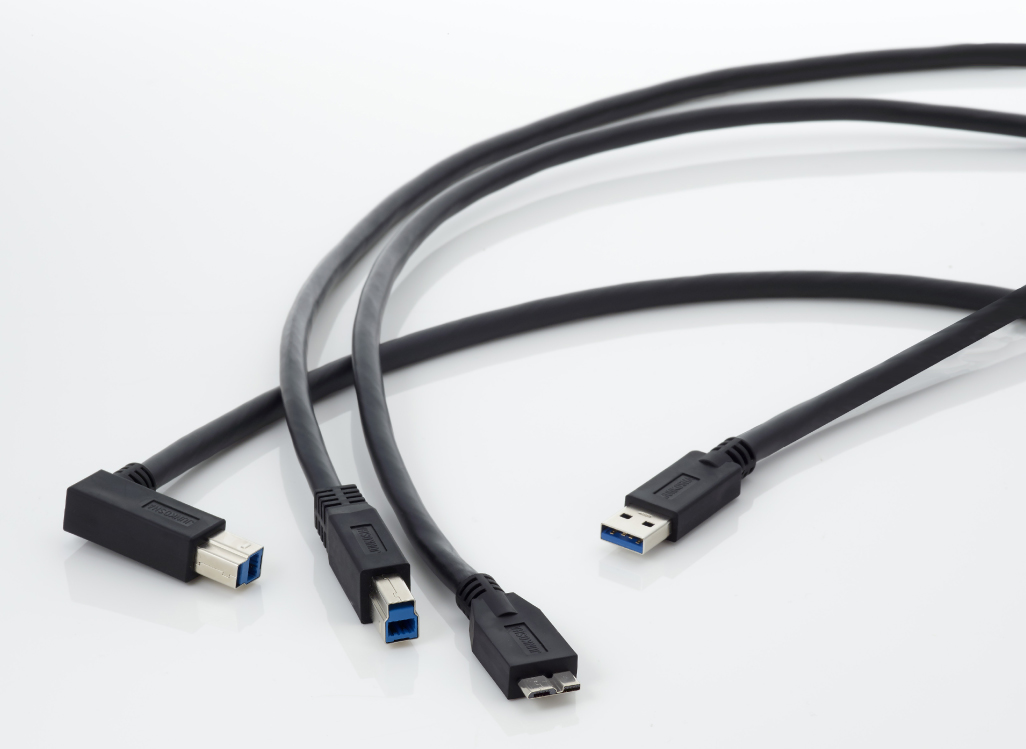

Cable Assembly for USB 3.0 with High Durability Moving Parts
- Cable assembly for USB3.0 that supports moving parts. It maintains high signal transmission characteristics even when used in harsh environments such as sliding motions exceeding 50 million times, and is expected to be effective in reducing maintenance frequency.
- This cable assembly differs from the requirements of the USB 3.0 standard in part, and achieves ultra-high durability with Junkosha's unique specifications.
| Correspondence Standard | USB3.1 Gen.1 | USB3.1 Gen.1 | USB3.1 Gen.2 |
| Cable Part Number | JU30 | JU01 | Custom Order |
| Type | Metal | Optical Fiber | Optical Fiber |
| Cable Outer Diameter | 6.7 mm | 4 mm | 4 mm |
| Maximum Transmission Bandwidth | 5 Gbps | 5 Gbps | 10 Gbps |
| Maximum Transmission Distance | ～3ｍ | ～10ｍ | ～10ｍ |
| Connector ( [ ] indicates connector code) | Type A: without screws [A] Type B: without screws [B] Type B: L-shaped angle [LB] Micro B: without screws: [MB] | Type A: without screws [A] Type A: with screws [AS] Micro B: with screws [MBS] Micro B: L type angle with screw [LMBS] | Type A: without screws [A ] Type A: with screws [AS] Micro B: with screws [MBS] Micro B: L-shaped angle with screw [LMBS] |

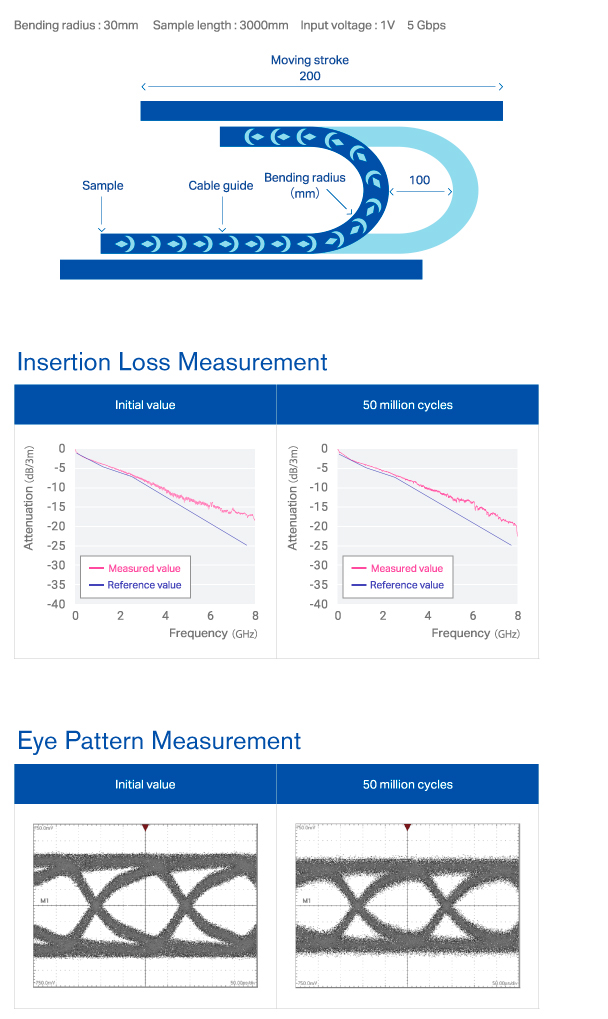

- Sliding Rolling Flex Test

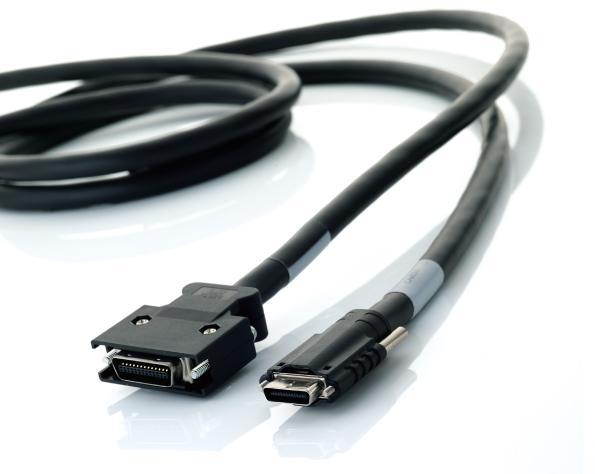

Cable Assemblies for Camera Link Standard for High Durability Moving Parts
- The MDR connector or HDR connector is assembled to each of two types of cables, the CL type that conforms to the Camera Link Interface Standard and the power supply type Camera Link PoCL type (Power over Camera Link).
| Cable Type | Catalog Number | Number of Cores | Outer Diameter [mm] | Camera Side Connector | Board Side Connector |
| CL | JCL22-SS-□□ | 22 | 8 | Standard | Standard |
| JCL22-MS-□□ | 22 | 8 | Mini | Standard | |
| JCL22-MM-□□ | 22 | 8 | Mini | Mini | |
| PoCL | JCL24-SS-□□ | 24 | 9 | Standard | Standard |
| JCL24-MS-□□ | 24 | 9 | Mini | Standard | |
| JCL24-MM-□□ | 24 | 9 | Mini | Mini |
□□□：Assembly Length（Example：50cm→005、1m→010、2m→020、3m→030、～8m→080）

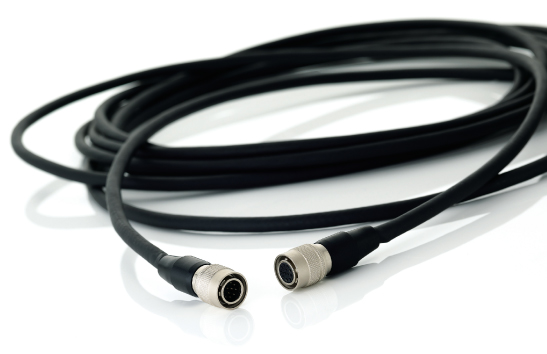

Analog Camera Cable for Moving Parts
- This is a cable for moving part compatible analog cameras that combines a moving part compatible coaxial cable and an electric wire according to the mechanical device to be used. Please refer to the Robot Cable Design Communication Sheet and contact the Junkosha Customer Service Center or sales representative.

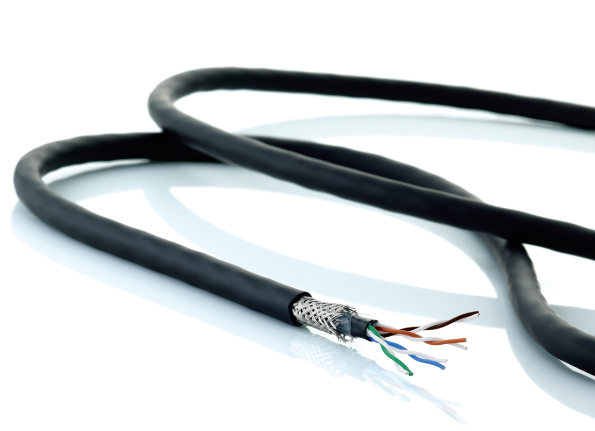

Cable for Lan for Moving Parts
- CAT5e compliant LAN cable for moving (sliding) parts. Even when used in harsh environments, these cables maintain high signal transmission characteristics and are expected to reduce the frequency of maintenance.
| Catalog Number | JLAN-CAT5-27 | |
| Structure | 4 Pair | |
| Conductor | Size | AWG 27 |
| Material | Silver-Plated High Tensile Strength Copper Alloy | |
| Insulator | FEP | |
| Bulk Shield | Braided Shield | |
| Sheath | PVC | |
| Outer Diameter | Standard 7.6mm （Max 8.3 mm） | |
| Approximate Mass | 74g | |
| Characteristic | Characteristic Impedance （Ω） | Standard 100 |
| Conductor Resistance（Ω/km） @20℃ | <150 | |
| Insulation Resistance（MΩ・km） | >1500 | |

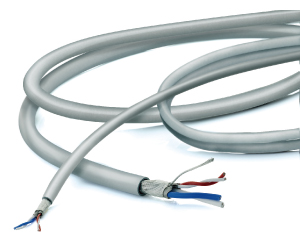

Cable for Device Net for Moving Parts
- DeviceNet compliant cable for moving (sliding) parts. It maintains high signal transmission characteristics even when used in harsh environments, and can be expected to require less maintenance.
| Catalog Number | JDVAN-THIN-01 | JDVAN-THIN-02 | |||
| Structure | Signal Line Twinax Cable | Power Line Shielded Twisted Pair | Signal Line Twinax Cable | Twisted Pair with Power Cable Shield | |
| Conductor | Size | AWG24 | AWG22 | AWG18 | AWG15 |
| Material | Tin-Plated Annealed Copper Wire | Tin-Plated Annealed Copper Wire | Tin-Plated Annealed Copper Wire | Tin-Plated Annealed Copper Wire | |
| Flexible Stranded Wire | Flexible Stranded Wire | Flexible Stranded Wire | Flexible Stranded Wire | ||
| Insulator | Material | FEP | ETFE | FEP | ETFE |
| Drain Wire | AWG22 Tinned Annealed Copper Wire, Flexible Stranded Wire | AWG18 Tin-Plated Annealed Copper Wire, Flexible Stranded Wire | |||
| Bulk Shield | Copper Alloy Wire, Special Horizontal Shield | Copper Alloy Wire, Special Horizontal Shield | |||
| Sheath | PVC | PVC | |||
| Outer Diameter | Standard 8.7mm (Maximum 9.5mm) | Standard 15.7mm (Maximum 17.9mm) | |||
| Approximate Mass | 85ｇ | 250ｇ | |||
| Characteristic | Characteristic Impedance （Ω） | 120 ±12 | ー | 120 ±12 | ー |
| Conductor Resistance （Ω/km） @20℃ | <100 | <50.8 | <22.6 | <10.3 | |
| Insulation Resistance （MΩ・km） | >1500 | >1500 | >1500 | >1500 | |

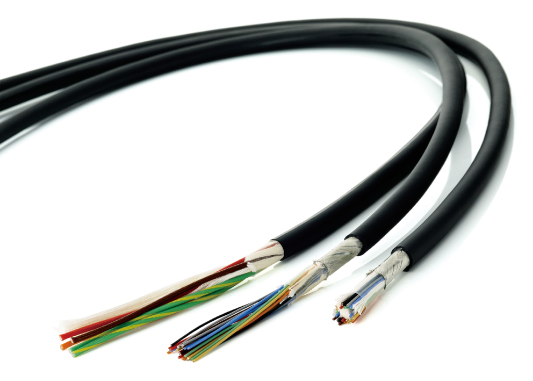

Robot Cables for Servo Motor Peripherals
- Dedicated cable for moving parts of servo motors and peripheral equipment, with excellent long life, bending resistance, and space saving. Low-friction PVC is used for the sheath.
