This cable was developed from fluoropolymers for multi-movement with excellent mechanical and electrical properties.
We also have the advantage of our ability to customize other characteristics that would yield thinner, lighter and longer life cycles of durability and reliability. In addition to transmitting electrical signals and power, we offer integrating hydraulic and pneumatic tubes for optimal assembly packaging.
Oil and chemical resistance, alongside low-outgassing properties, make this cable design suitable for usage in the field of semiconductor manufacturing and robots.
We also have the advantage of our ability to customize other characteristics that would yield thinner, lighter and longer life cycles of durability and reliability. In addition to transmitting electrical signals and power, we offer integrating hydraulic and pneumatic tubes for optimal assembly packaging.
Oil and chemical resistance, alongside low-outgassing properties, make this cable design suitable for usage in the field of semiconductor manufacturing and robots.
Features
- Outstanding bending life
- Thinner diameter and lightweight
- Both electrical and pneumatic control lines can be integrated into one composite unit
- Flat, round and curl cable can be manufactured
- Outgassing resistance, oil resistance and chemical resistance for harsh usage
- Good flexibility for customization of products
- Thinner diameter and lightweight
- Both electrical and pneumatic control lines can be integrated into one composite unit
- Flat, round and curl cable can be manufactured
- Outgassing resistance, oil resistance and chemical resistance for harsh usage
- Good flexibility for customization of products
Use
- Semiconductor manufacturing equipment and FA robots, etc.
Conductor Variations, A, B, C and D Types According to Requested Flex Life
Conductor Variations
| Type A | Type C | Type D | |
| Type | ME1 | ME2 | ME7 |
| Center Conductor Material | TA | TO | TAT |
| Center Conductor Wire Diameter (mm) | 0.08 | 0.05 | 0.05 |
| Insulator material | ETFE | ETFE | ETFE |
TA: Tin annealed copper wire, TAT: Tin copper alloy wire, TO: Tin oxygen-free copper wire

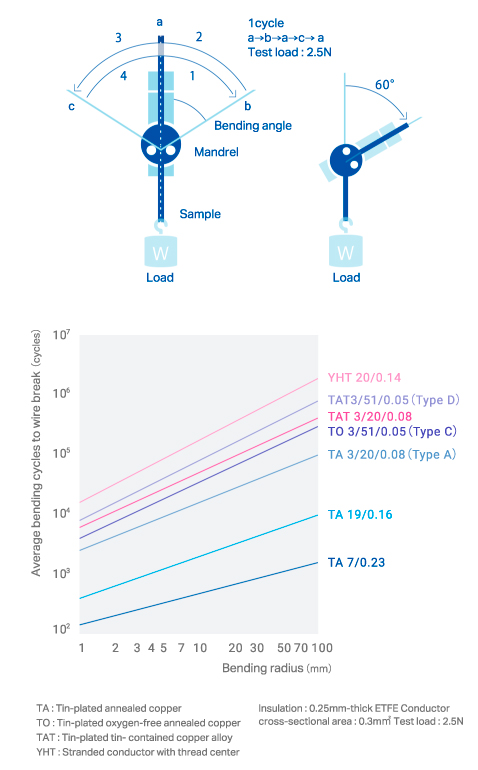

Bending Test Data of 0.3m㎡ ETFE Wires
