Junkosha Microwave/mmWave Coaxial Cable Assembly
A highly precise skew matching cable assembly with skew of 1psec or less between 2 cables, designed for digital transmission evaluation.
Continuous operating temperature range: -30 to +85°C.
Exhibits low cable insertion loss and is suitable for high-precision differential signal transmission evaluation and measurement applications.
4 types of cables with different maximum usage frequencies (26.5GHz, 40GHz, 50GHz, and 67GHz) are available.
Continuous operating temperature range: -30 to +85°C.
Exhibits low cable insertion loss and is suitable for high-precision differential signal transmission evaluation and measurement applications.
4 types of cables with different maximum usage frequencies (26.5GHz, 40GHz, 50GHz, and 67GHz) are available.
Cable Assembly Designer
We can help you design your cable assembly and confirm your cable assembly specification.
Features
- Skew between 2 cables of 1psec or less
- Skew matching for 2 or more cables is also available (optional)
- Skew matching for 2 or more cables is also available (optional)
Use
- High-precision differential signal transmission evaluation and measurement
| Cable Type | MWX621 | MWX641 | MWX651 | MWX661 | |
| Maximum Usable Frequencies | 26.5GHz | 40.0GHz | 50.0GHz | 67.0GHz | |
| Standard Insertion Loss (dB/m) | @18.5GHz | 1.2 | 1.8 | 2.1 | 2.9 |
| @Maximum Frequency | 1.4 | 3 | 3.8 | 5.6 | |
| Outer Cable Diameter (mm) | 6 | 4.1 | 3.7 | 2.6 | |
| Cable Weight (g/m) | 65 | 35 | 29 | 17 | |
| Continuous Operating Temperature Range (°C) | -30~+85 | ||||
| Assembly Length (mm) | Minimum | 200 | 200 | 200 | 200 |
| Maximum | 1500 | 1500 | 1500 | 1500 | |
This table provides standard length availability within our catalog. We can provide custom lengths upon request; please contact us to discuss.

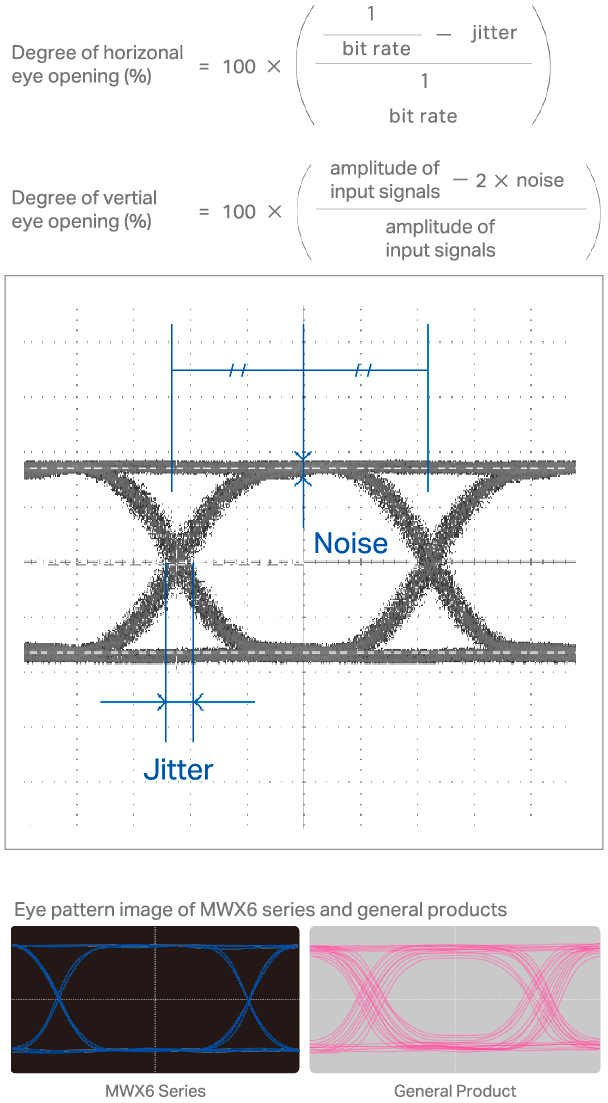

Junkosha’s Method of Calculating Degree of Eye Pattern
- To measure pulse wave transmission characteristics, an experimental tool called "eye pattern" is observed. Upon balanced transmission, skew (variability of propagation delay time) between the signal cables will become one of the causes of deterioration of the jitter. Our MWX6 series are designed and manufactured taking the above into consideration.
