Junkosha Microwave/mmWave Coaxial Cable Assembly

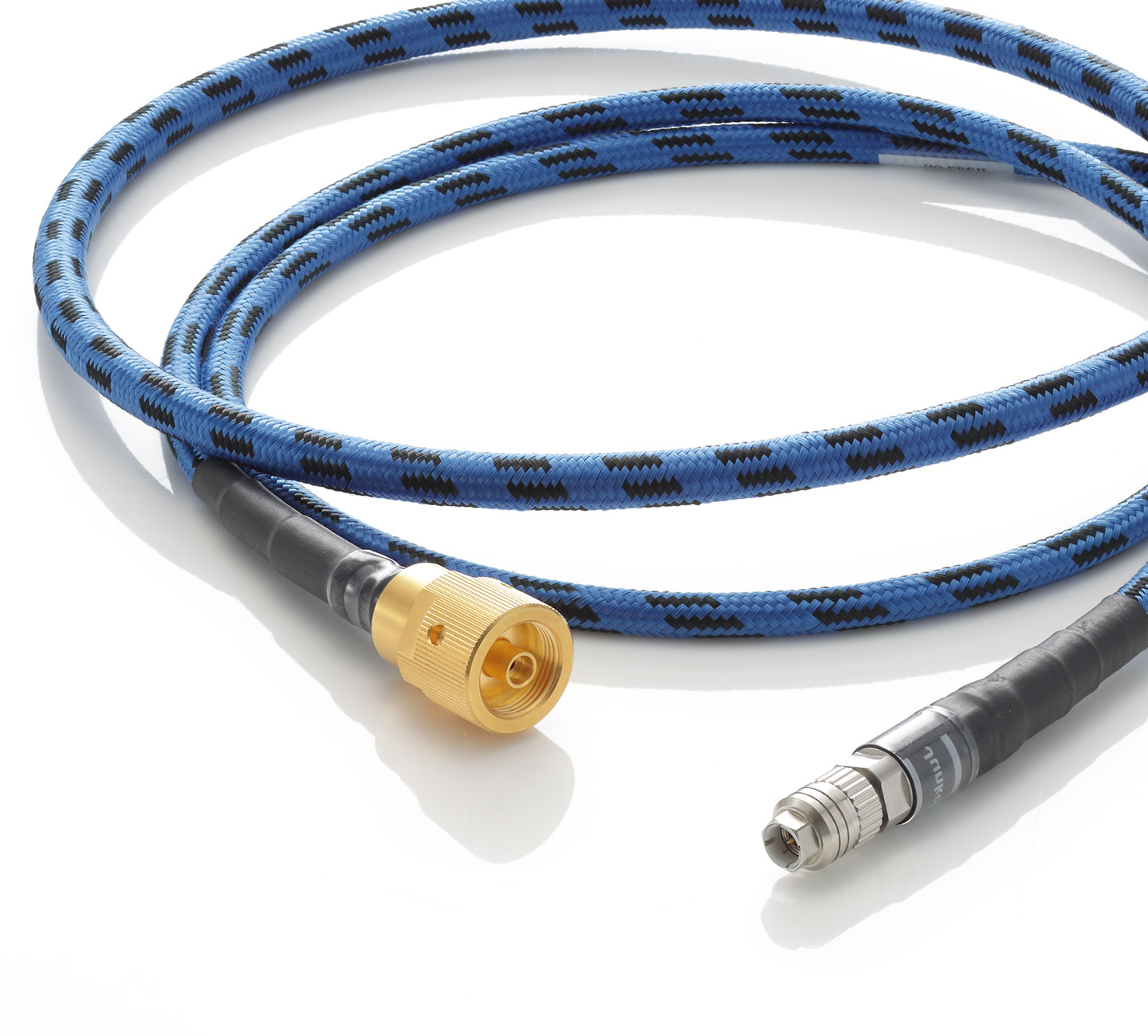

Our 2 Series cable assembly showcases excellent phase stability against bending, developed with microwave/mmWave measurement environments in mind.
Its flexibility means low repulsion, reducing the load on the measured object
Its flexibility means low repulsion, reducing the load on the measured object
Cable Assembly Designer
We can help you design your cable assembly and confirm your cable assembly specification.
Features
- Excellent flexibility and phase stability against bending
- We also have an extensive lineup of connectors
- Select an armored type for reduced external mechanical damage
- We also have an extensive lineup of connectors
- Select an armored type for reduced external mechanical damage
Use
- For mmWave/microwave band measurement
- For measurement of minute devices for which flexibility is required
- For measurement of minute devices for which flexibility is required
| Cable Type | MWX221 | MWX221 Armored Type | MWX241 Armored Type | MWX241 Non-Armored type | MWX251 Armored Type | MWX251 Non-Armored Type | MWX261 Armored Type | MWX261 Non-Armored Type | |
| Maximum Usable Frequencies | 26.5 GHz | 40.0 GHz | 50.0 GHz | 67.0 GHz | |||||
| Standard Insertion Loss (dB/m) | @18.5GHz | 1.2 | 1.8 | 2.1 | 2.9 | ||||
| @Maximum Frequency | 1.4 | 3 | 3.8 | 5.6 | |||||
| Outer Cable Diameter (mm) | 6 | 12.5 | 9.5 | 4.1 | 9.5 | 3.7 | 7.7 | 2.6 | |
| Cable Weight (g/m) | 64 | 212 | 137 | 35 | 129 | 29 | 90 | 17 | |
| Continuous Operating Temperature Range (°C) | -30~+85 | ||||||||
| Assembly Length (mm) | Minimum | 200 | 700 | 700 | 200 | 700 | 200 | 700 | 200 |
| Maximum | 5000 | 5000 | 5000 | 5000 | 1500 | 1500 | 1500 | 1500 | |
| Notes | Standard Catalog Product | Standard Catalog Product | Standard Catalog Product | Made to Spec | Standard Catalog Product | Made to Spec | Standard Catalog Product | Made to Spec | |
This table provides standard length availability within our catalog. We can provide custom lengths upon request; please contact us to discuss.
Flexibility Data

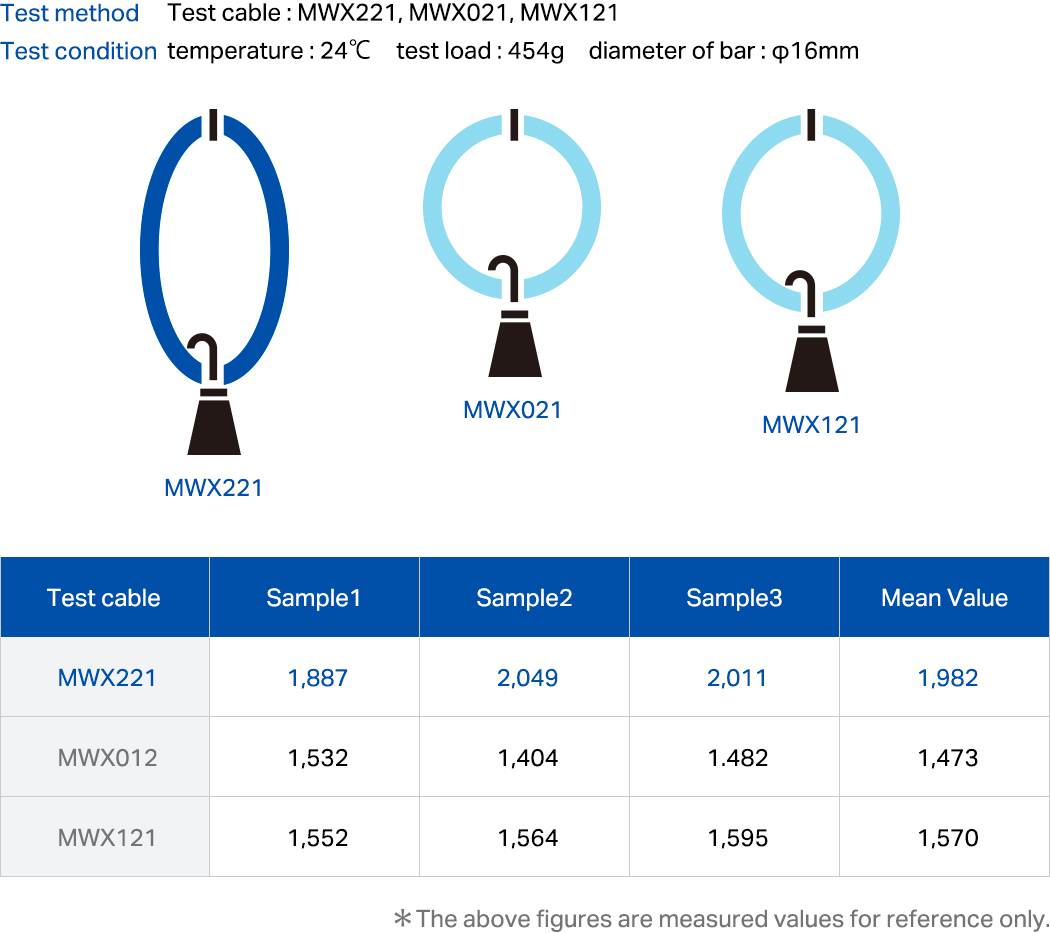

- A test cable measuring 1,000 mm in length was formed into a circle with an internal diameter of 300mm. Both ends were overlapped and secured with tape measuring 50 mm in width. The circularly formed test cable was then suspended, with the overlapping end section at the top and a weight positioned at the bottom. Circularity was measured after five seconds. (Circularity is expressed as the ratio a/b.)
