Junkosha Microwave/mmWave Coaxial Cable Assembly
Junkosha’s new mmWave VNA Test Cable Assembly exhibits excellent phase (within +/- 4.5˚ at 50 GHz), and amplitude (within +/- 0.08 dB at 50 GHz) stability in flexure alongside strong phase stability in temperature through its 50 GHz bandwidth, available with NMD connector.
The assembly also displays impressive performance durability, surpassing 50,000 tick tock cycles during testing. The cable is bent 180˚ on a 2.25” radius mandrel with ease, demonstrating superior flexibility and no spring back. A ruggedized port side NMD connector is also available to ensure reliable connections to the VNA.
The assembly also displays impressive performance durability, surpassing 50,000 tick tock cycles during testing. The cable is bent 180˚ on a 2.25” radius mandrel with ease, demonstrating superior flexibility and no spring back. A ruggedized port side NMD connector is also available to ensure reliable connections to the VNA.
Features
- The highest precision
- Guaranteed Phase & Amplitude stability
- Ruggedized NMD connectors available
- Guaranteed Phase & Amplitude stability
- Ruggedized NMD connectors available
Use
- Vector network analyzers
- Calibration
- The highest accuracy measurement
- Calibration
- The highest accuracy measurement
Specification
| Cable Type | 821 | 851 | ||
| Frequency [GHz] | 26.5 | 50.0 | ||
| Assembly Length [in] | 25” | 38" | 25" | 38" |
| Maximum Operating Frequency [GHz] | 26.5 | 26.5 | 50 | 50 |
| Characteristic Impedance Nom. [Ω] | 50 | 50 | 50 | 50 |
| Maximum Phase Stability [degree (@Max Freq.)] | 3.9 | 7.1 | 4.5 | 9.0 |
| Maximum Amplitude Stability [dB (@Max Freq.)] | 0.08 | 0.15 | 0.08 | 0.15 |
| Nominal Velocity of Propagation [%] | 79 | 79 | 79 | 79 |
| Typical Insertion loss [dB (@Max Freq.)] | 1.75 | 2.45 | 3.6 | 5.1 |
| Maximum Insertion loss [dB (@Max Freq.)] | 2.1 | 2.8 | 4.5 | 6.2 |
| Typical VSWR | 1.29:1 | 1.43:1 | ||
| Shielding Effectiveness to 18GHz [dB] | > 90 | > 90 | ||
| Cable Outer Diameter [ in (mm) ] | 0.56 (14.2) | 0.56 (14.2) | ||
| Minimum Bending Radius [ in (mm) ] | 2.25 (57) | 2.25 (57) | ||
| Typical Cable Mass [ oz/ft (g/m) ] | 2.58 (240) | 2.26 (210) | ||
| Operating Temperature Range [°C]} | 23+/-5 | 23+/-5 | ||
821 for 26.5 GHz will be available soon.

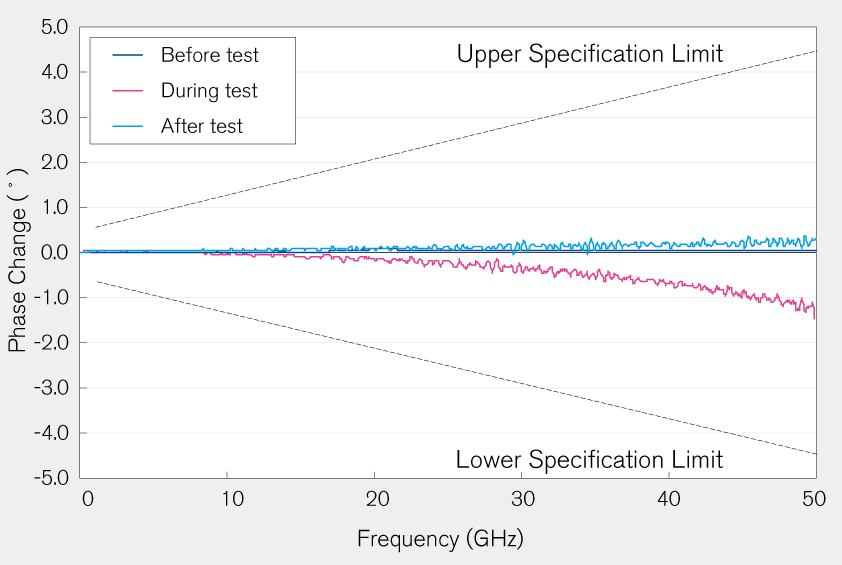

- Tyipical Phase Stabillty in Flexure
-
Test condition
Sample length: 635 mm.
Bend condition
1) Initial straight shape
2) Bent 180° 114 mm mandrel
3) Back to the straight shape again
